Specification

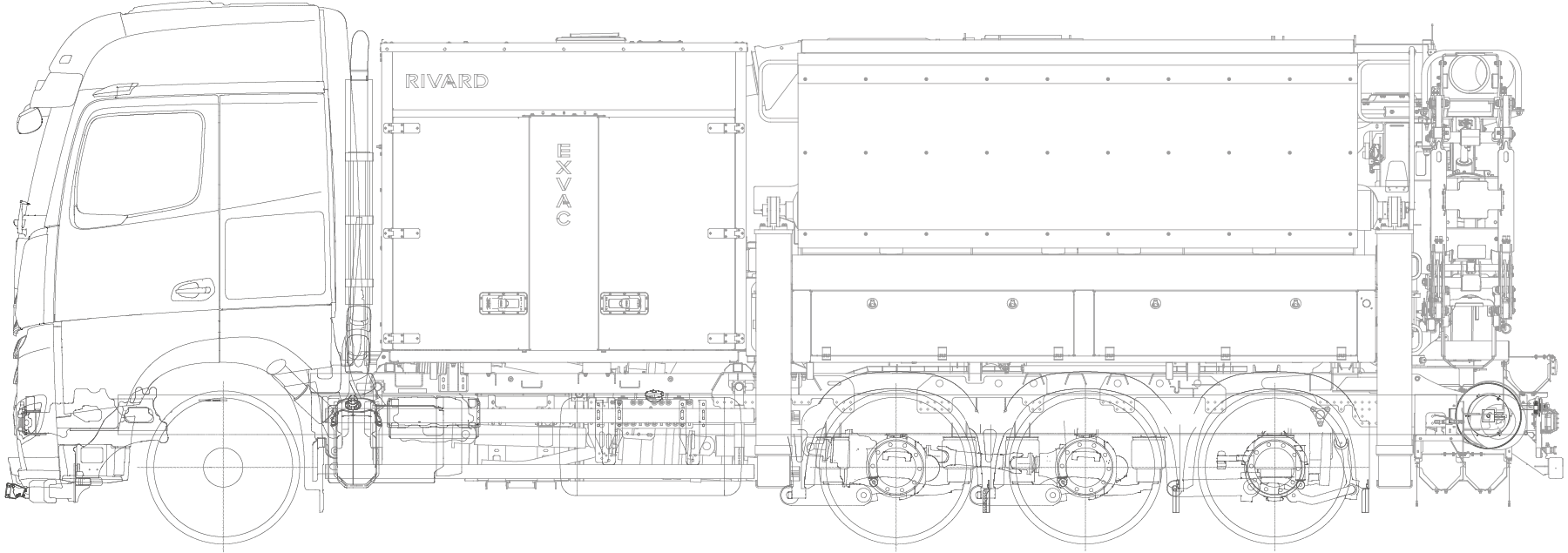

The specification diagram and dimensions shown are based on the EXVAC 32t Suction Excavator built on a Mercedes Benz AROCS chassis.

The EXVAC can be supplied on a range of chassis including Renault and Volvo.

The information provided is indicative only. If you have any questions relating to EXVAC specifications and the optional extras available, please click here to speak to an EXVAC expert.

Hydrostatic steering system – (Optional)

Turbine – 30,000m3/h – 0.4 or 0.5 vacuum (depending on the model)

Compressor – 3.1m3/min (7 bar)

Access platform for the filtration chamber

Tank – 10.5m3

Access platform for the tank and the tank/boom coupling

Articulated boom – Hose Ø250mm

Discharge outlet if tank has excess water in the load

Rotating nozzle

LED beacon light

Storage for nozzle

Reel – 3/8” – 200 bar – 10m (Left side)

Reel – non-oiled compressed air – 10m

Reel – oiled compressed air – 10m

Earth Reel – 10m (Right-hand side)

Storage for two extension pieces

Stabilisers (left and right-hand sides)

High-pressure water pump- 15L/min – 200bar

Water tank – 400L

Hydrostatic drive – (Optional)

Stabiliser

Filter chamber inspection lid

Hydrostatic steering system – (Optional)

Turbine – 30,000m3/h – 0.4 or 0.5 vacuum (depending on the model)

Compressor – 3.1m3/min (7 bar)

Access platform for the filtration chamber

Tank – 10.5m3

Access platform for the tank and the tank/boom coupling

Articulated boom – Hose Ø250mm

Discharge outlet if tank has excess water in the load

IKE

LED beacon light

Storage for nozzle

Reel – 3/8” – 200 bar – 10m (Left side)

Reel – non-oiled compressed air – 10m

Reel – oiled compressed air – 10m

Earth Reel – 10m (Right-hand side)

Storage for two extension pieces

Stabilisers (left and right-hand sides)

High-pressure water pump- 15L/min – 200bar

Water tank – 400L

Hydrostatic drive – (Optional)

Stabiliser

Filter chamber inspection lid

Vehicle Dimensions
ParameterSize
Length11,090 mm
Height3,658 mm
Width2,500 mm
Weight Distribution
ElementTotal Weight
Authorised maximum weight32,000 kg**
Unladen weight25,630 kg
Capacity (net of filter chamber)10.5m3
